Dematic roller curve left 180°-600-540 IR795

Preview: Dematic roller curve left 180°-600-540 IR795

Dematic roller curve left 180°-600-540 IR795

€3,251.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2325

Dematic roller curve left 180°-600-540 IR795 RA2325 Make: Dematic Running direction: 180°... more

Close menu

Product information "Dematic roller curve left 180°-600-540 IR795"

Dematic roller curve left 180°-600-540 IR795

RA2325

Make: Dematic
Running direction: 180° left running

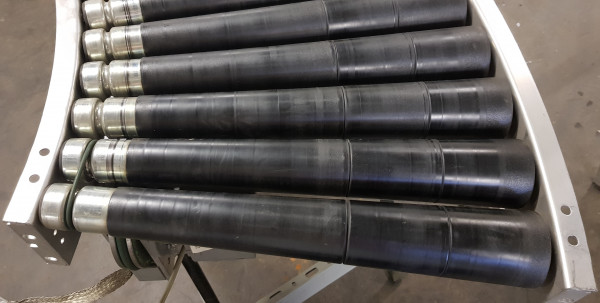

Roller width (RB): 540 mm conical, plastic coating
Nominal/outer width (NB): 600 mm
Inner radius (IR): 797 mm
Overall height frame: 132 mm
Height including motor: 275 mm

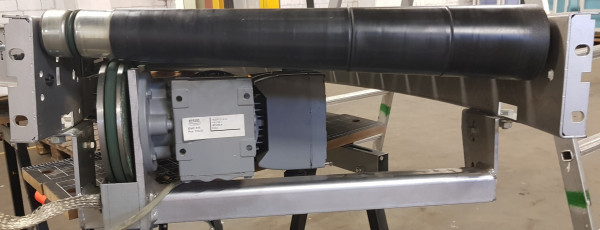

Motor MOVI-Mot 3x300-500V 0,25kW 1400 u/min max
Brake 220-240V
Gear motor: SEW
Conveyor speed: 0,71 m/s

Can be separated into 2x90° for shipping

Optionally available:
Frequencyconverter
Supports
sideguides

All prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Drive type:	Round belt
Construction year:	2001
condition:	good (used)
Nominal / inner radius in mm:	795
Nominal / outside width in mm:	600
Roll width in mm:	540
angle:	180°
Driven:	YES
scope of delivery:	without supports and side guides
