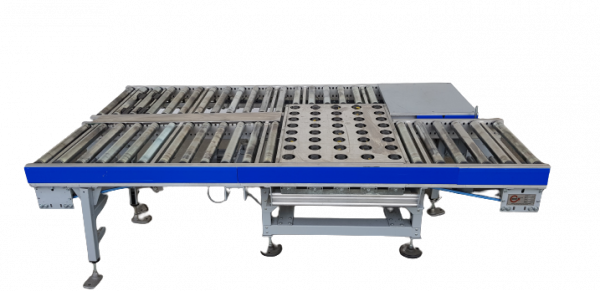

Gebhardt roller conveyor turnout sorter switch diverter ejector 45° 2400-1300-550

Preview: Gebhardt roller conveyor turnout sorter switch diverter ejector 45° 2400-1300-550

Gebhardt roller conveyor turnout sorter switch diverter ejector 45° 2400-1300-550

€4,950.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA1147

Gebhardt roller conveyor turnout sorter switch diverter ejector 45° 2400-1300-550 RA1147 Type... more

Close menu

Product information "Gebhardt roller conveyor turnout sorter switch diverter ejector 45° 2400-1300-550"

Gebhardt roller conveyor turnout sorter switch diverter ejector 45° 2400-1300-550

RA1147

Type 356.10
year of construction 2007

perm. weight load: 30 kg/m
dead weight: 40 kg/m
roll width: 550 mm
nominal/external width (NB): 610 mm
push-off element: roller
adjusted headroom: 680 mm
conveying speed: 0,35 m/sec.
Brake for dust operation on discharge track
drive of discharge mechanism: electric
dimensions of the conveyed material: l x w = 600 mm x 400 mm

Optional:
Adjusted height on your request
Electrical attachments like light barriers, barcode sensors
Control/Software

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

condition:	very good (used)
Construction year:	2007
nominal voltage:	230, 380-500V
Conveying length in mm:	2400
Nominal / outside width in mm:	1300
Roll width in mm:	550
Roll division in mm:	100
Driven:	YES
Engine type:	SEW Eurodrive
Conveyor speed m / s:	0,35
