Knapp roller conveyor accumulating sorter sorting system 11200-375-290

Knapp
€10,370.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Do you have any questions concerning this product?
Description Zusatzinformationen
Description
Knapp roller conveyor accumulating sorter sorting system Fastlane 11200-375-290 RA1954 Brand:... more
Close menu
Product information "Knapp roller conveyor accumulating sorter sorting system 11200-375-290"

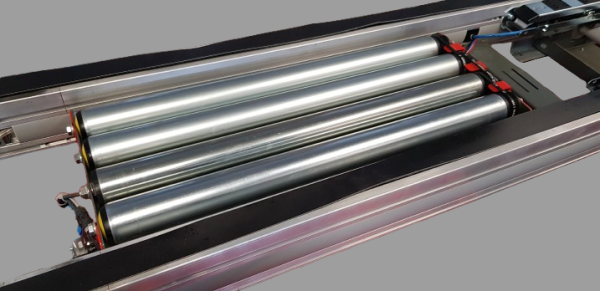

Knapp roller conveyor accumulating sorter sorting system Fastlane 11200-375-290
RA1954

Brand: Knapp
Running direction: both directions
Belt spacing: 290 mm
Nominal/outer width (NB): 375 mm
Length: 11200 mm
Frame height: 105 mm /190 mm with sorter
Belt width: 35 mm
Number of outfeeders: 6 pcs.

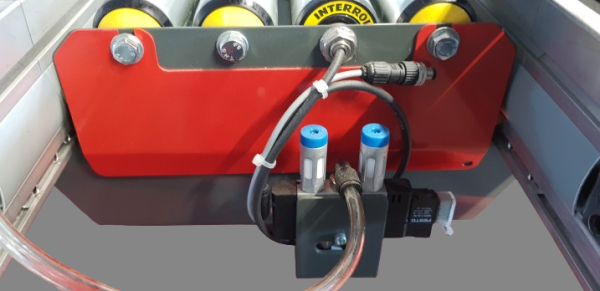

Number of pneumatic accumulation places: 6 pcs.
Belt conveying speed: 36 m/min
Accumulation and sorting length: 600 mm.
Theoretical sorting speed: 2.0 Sec/sorting, 1800 sortings per hour

Electrical data:

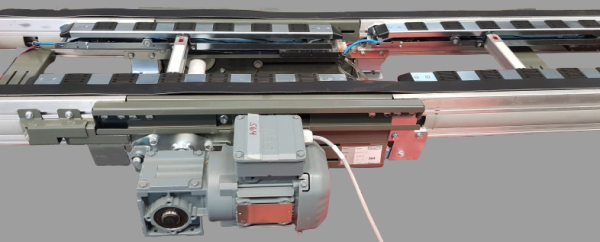

SEW geared motor 0.37 kW, 380V

Scope of delivery: without supports, without side guides, with drive station, with light barriers and accumulation mechanism

Optionally available:
Supports
Side guide on one and both sides
Change of total length/position
Faster motor for higher throughput rates (theoretically 3200 sorts per hour)
Programming for sorting process

Price: plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg

Construction year: 2015
scope of delivery: inklusive Interroll Motorkontroller, inklusive Lichtschranken, inklusive Pneumatische Ventile und Zylinder, without supports and side guides
Driven: YES
Conveyor speed m / s: 0,6
nominal voltage: 24V, 380-500V
condition: Ausstellungsstück
Jam detection: Lichtschranke
Nominal / outside width in mm: 375
Conveying length in mm: 11200
Engine type: SEW Getriebemotor
Stowage spaces: 12
