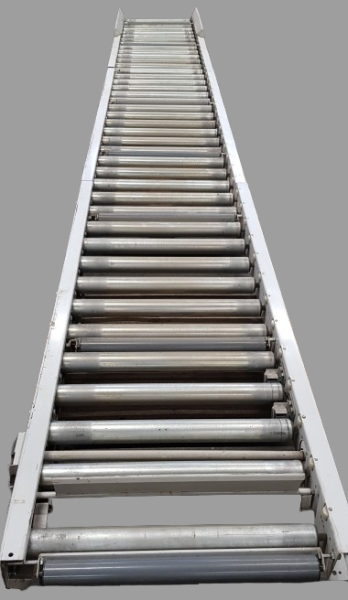

Pallet roller conveyor Accumulating 7500-1000-840 Half and Euro pallets

Pallet roller conveyor Accumulating 7500-1000-840

RA2349

Conveyor length (FL): 7500 mm
Roller width (RB): 840 mm
Outer width/nominal width (NB): 1000 mm
Roller spacing / pitch 175 mm
Frame height: 160 mm
Current storage space size approx. 900 mm
8 storage spaces
Storage mechanism can be converted for other storage space sizes, e.g. 1200 mm for Euro pallets
Length can be extended/reduced. Several units available
single roller drive chain, so that several elements can be driven with one motor.

for pallet weights up to 1000 kg

Optionally available
supports
side guides
Frequency inverter for infinitely variable speed control

Price plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg
