Transnorm roller conveyor ejector conveyor cross roller 2500-700-685

Preview: Transnorm roller conveyor ejector conveyor cross roller 2500-700-685

Transnorm roller conveyor ejector conveyor cross roller 2500-700-685

€4,139.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2212

Transnorm roller conveyor ejector GF 2500-700-685 RA2212 Make: Transnorm Roller width (RB):... more

Close menu

Product information "Transnorm roller conveyor ejector conveyor cross roller 2500-700-685"

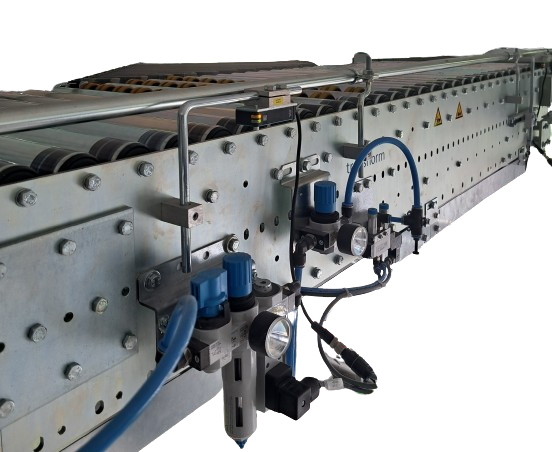

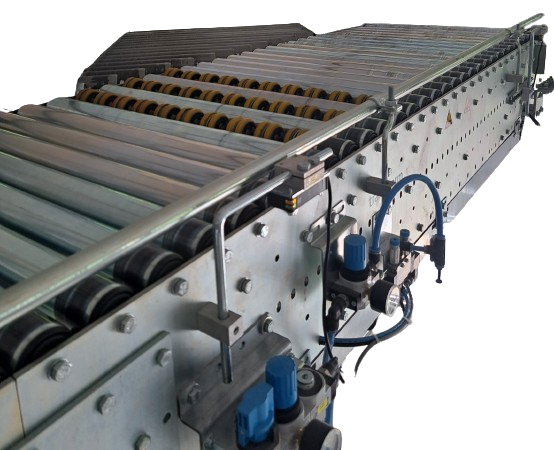

Transnorm roller conveyor ejector GF 2500-700-685

RA2212

Make: Transnorm
Roller width (RB): 685 mm, Steel rolls
Nominal/outer width (NB): 700 mm
Rolls diameter: 50 mm
length: 1800 mm, 2500 mm or 3180 mm (double)
Overall height frame: 250
ejector angle: 45°, left
3 rows ejector pneumatic controllable

Motor MOVI-Mot 300-500V 1,75kW
Conveyor speed: freely adjustable with frequency converter

Scope of delivery: without supports (please enquire if required)

Prices net plus VAT. ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

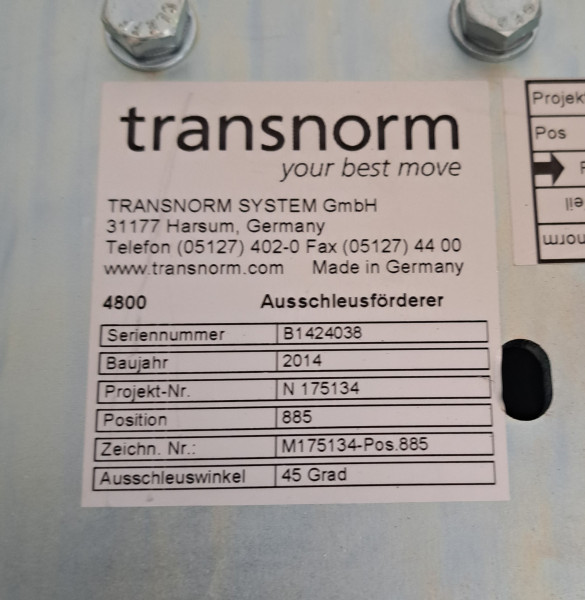

Construction year:	2014
Roll division in mm:	65
scope of delivery:	inklusive Frequenzumrichter, without supports
KW:	1,5/S1
Electric data:	380-500
Bauhöhe in mm (BH):	250
Roll width in mm:	685
angle:	45° Links
Conveying length in mm (NL):	1800, 2500, 3180
Frame width in mm (NB):	700
