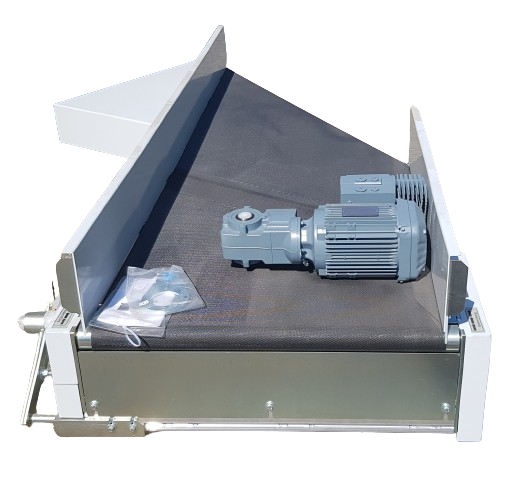

Transnorm angled-belt conveyor 30° 1750-1000-800
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA2305
Transnorm angled-belt conveyor 30° 1750-1000-800
RA2305
NEW
Make: Transnorm
Year of manufacture: 2022
Inlet angle: 30
Length center: 1670 mm
Belt width (RB): 800 mm
Frame height: 300 mm
Nominal/external width (NB): 1000 mm, 1200 mm with motor
Conveying speed: with Frequency converter for infinitely variable speed control between 0.25-0.75 mm/s,
V230/400
kW 2,2
Overall height side wall: 200 mm
Scope of delivery: with motor and side guides
Optional:
Supports
Price plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg
angle: | 30° |
scope of delivery: | including side guides without supports, inklusive Frequenzumrichter |
condition: | Ausstellungsstück |
Antrieb: | SEW Getriebemotor |
Electric data: | 380-400 |
Bauhöhe in mm (BH): | 300 |
KW: | 2,2 |
Belt width in mm (GuB): | 800 |
Optional erhältlich: | Füße |
Construction year: | 2022 |
Conveying length in mm (NL): | 1670 |
Frame width in mm (NB): | 1000 |
