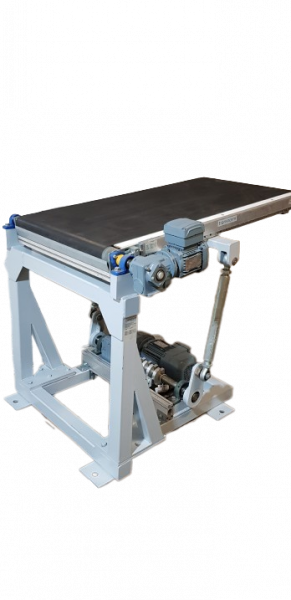

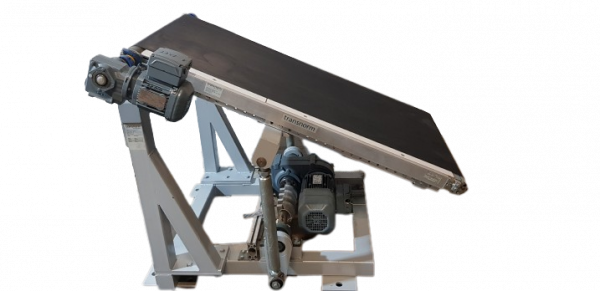

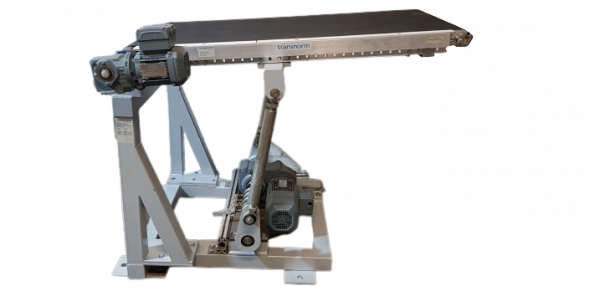

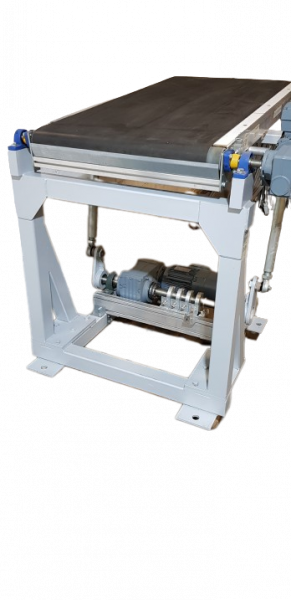

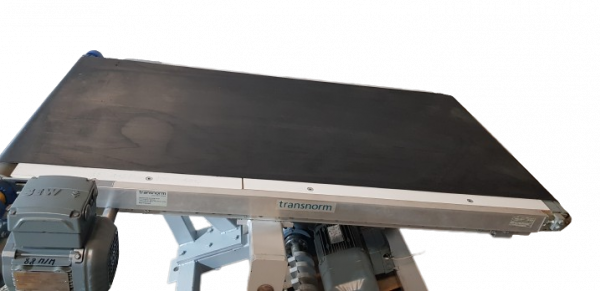

Transnorm belt conveyor belt conveyor belt flap belt Smart Sort GF 1450-800-700

Preview: Transnorm belt conveyor belt conveyor belt flap belt Smart Sort GF 1450-800-700

Transnorm belt conveyor belt conveyor belt flap belt Smart Sort GF 1450-800-700

€4,585.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2037

Transnorm belt conveyor belt conveyor belt flap belt Smart Sort GF 1450-800-700 RA2037... more

Close menu

Product information "Transnorm belt conveyor belt conveyor belt flap belt Smart Sort GF 1450-800-700"

Transnorm belt conveyor belt conveyor belt flap belt Smart Sort GF 1450-800-700

RA2037

Technical data:

Conveyor length (NL): 1450 mm
frame width (NB): 800 mm, 150 with motor
Belt width (GuB): 700 mm
headroom (BH)/transfer height : 800 mm
Conveying speed (v m/s): 1.47

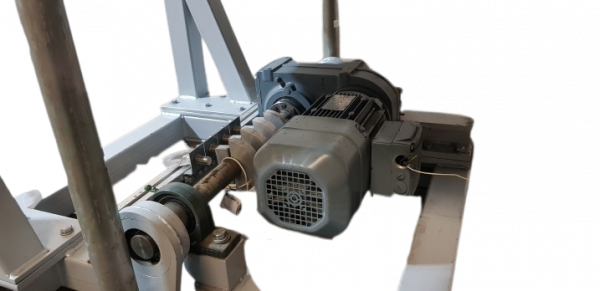

Drive: SEW gear motors, with brake at angle adjustment
Electrical data: 50Hz V380-500, kW 0,37 drive belt and 2,2 drive angle
height of sorting out bottom: 500 mm
sorting height top 1200 mm
Angle adjustment speed: 1s from min to max
year of construction: 2009
Special feature / accessories: 4x proximity sensors for angle determination

Optionally available:
Side guide one-sided and both-sided

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year:	2009
condition:	Ausstellungsstück
Conveying length in mm:	1450
Nominal / outside width in mm:	1150, 800
Belt width in mm:	700
Driven:	YES
Engine type:	SEW Eurodrive
KW:	2,2 , 0,37/S1
Conveyor speed m / s:	1,47
scope of delivery:	4x Näherungssensoren, including supports without side guides

Zusatzinformationen

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
