Transnorm curved belt conveyor right 150°-780-600-IR600
Transnorm curved belt conveyor right 150°-780-600-IR600
Transnorm curved belt conveyor right 150°-780-600-IR600
Transnorm curved belt conveyor right 150°-780-600-IR600
Transnorm curved belt conveyor right 150°-780-600-IR600
Preview: Transnorm curved belt conveyor right 150°-780-600-IR600 Preview: Transnorm curved belt conveyor right 150°-780-600-IR600 Preview: Transnorm curved belt conveyor right 150°-780-600-IR600 Preview: Transnorm curved belt conveyor right 150°-780-600-IR600 Preview: Transnorm curved belt conveyor right 150°-780-600-IR600


Transnorm curved belt conveyor right 150°-780-600-IR600

Transnorm
€1,750.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Do you have any questions concerning this product?
Description Zusatzinformationen
Description
Transnorm curved belt conveyor right 150°-780-600-IR600 RA2002 Technical data: Manufacturer:... more
Close menu
Product information "Transnorm curved belt conveyor right 150°-780-600-IR600"

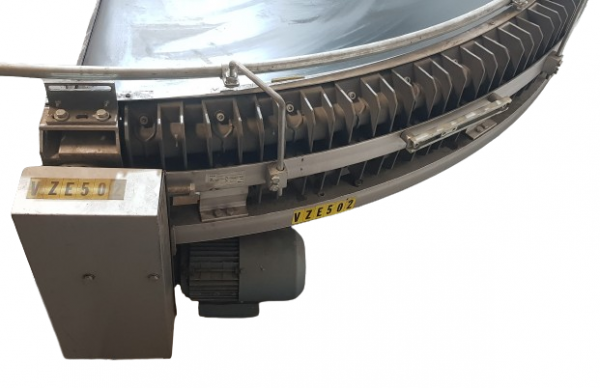

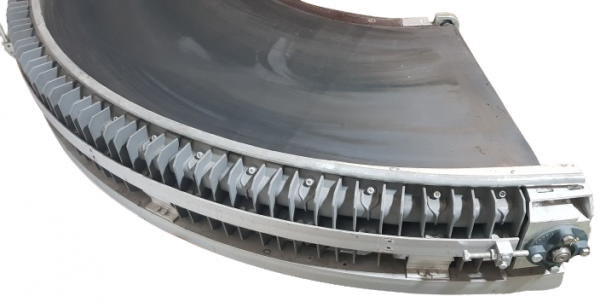

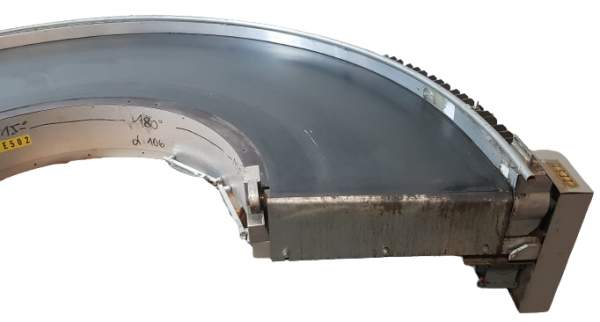

Transnorm curved belt conveyor right 150°-780-600-IR600

RA2002
Technical data:

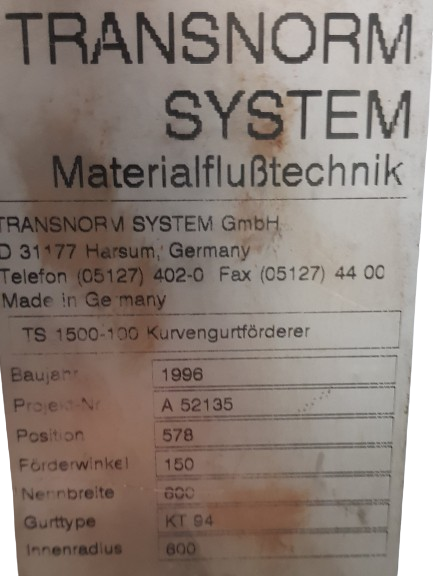

Manufacturer: Transnorm
Year of manufacture: 1996
Condition: good (used)
Motor: will be changed
conveying angle: 150°
nominal/external width (NB): 780 mm
belt width (GB): 600 mm
innerradius (IR): 600 mm
overall height (BH): 210 mm
motor height (MH): 450 mm
Motor type: SEW gear motor
Motor power: kW 0.55 230/400 V 50Hz
Conveying speed: please contact

Scope of delivery: without supports (if required, please contact us)

Optional: supports
Side guides
Frequency converter for stepless speed control

Price plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg

Construction year: 1996
condition: gut
Nominal / inner radius in mm: 600
Nominal / outside width in mm: 780
Belt width in mm: 600
angle: 150°
Driven: YES
Running direction: RIGHT
Engine type: SEW Eurodrive
KW: 0,55/S1
scope of delivery: without supports and side guides
Zusatzinformationen
Zusatzinformationen

For individual, expert advice, simply get in touch with us.
Simply contact us by phone or email.
We will be happy to help you plan and implement your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
