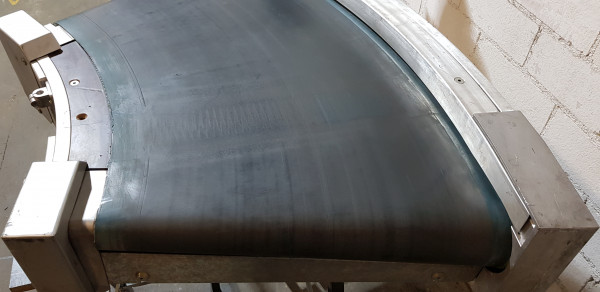

Transnorm belt curve conveyor left GF 50°-740-550 IR700

Preview: Transnorm belt curve conveyor left GF 50°-740-550 IR700

Transnorm belt curve conveyor left GF 50°-740-550 IR700

€2,100.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA1948

Transnorm belt curve conveyor left GF50°-740-550 IR700 RA1948 Technical data: Conveying... more

Close menu

Product information "Transnorm belt curve conveyor left GF 50°-740-550 IR700"

Transnorm belt curve conveyor left GF50°-740-550 IR700

RA1948

Technical data:

Conveying length middle radius (NL): 851 mm
Frame width (NB): 750 mm
belt width (GuB): 550 mm
height (BH): 200 mm
Inner radius (IR): 700 mm
Conveying angle: 50° degrees
support feet: optionally available
Conveying speed (V m/s): 0,045-1,3m/s

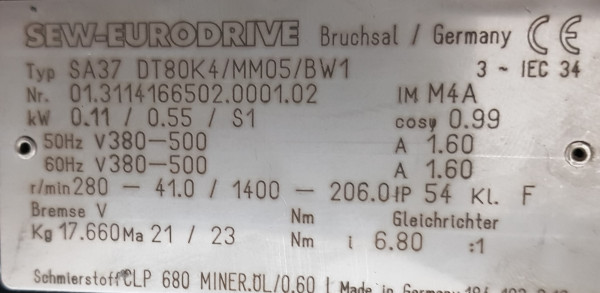

Drive: SEW gear motor
Electrical data: 50Hz v380-500, kW 0.11 / 0.55 / S1
belt: double layer, green, smooth
Year of construction: 2001

Optionally available:
Supports:
Side guide one- and both sideds

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2001
condition:	good (used)
Nominal / inner radius in mm:	700
Nominal / outside width in mm:	740
Belt width in mm:	550
angle:	50°
Driven:	YES
Running direction:	LINKS
Engine type:	SEW Eurodrive
KW:	0,55/S1
Ampere:	1,60
Conveyor speed m / s:	0,8
scope of delivery:	without supports and side guides

Zusatzinformationen

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
