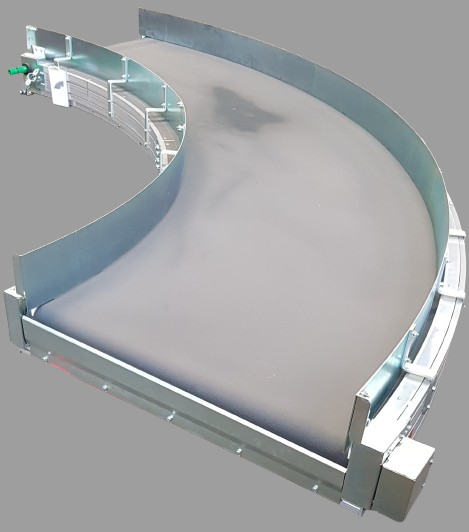

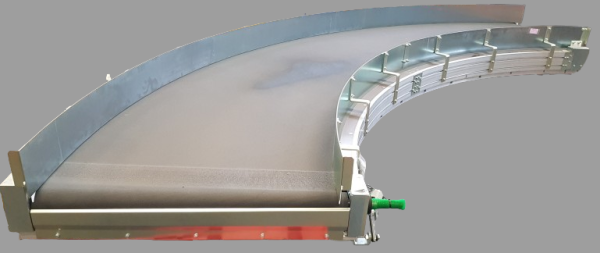

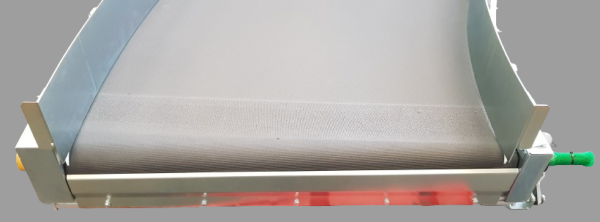

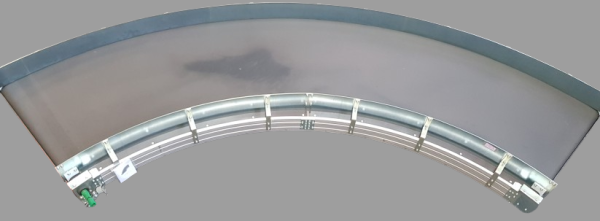

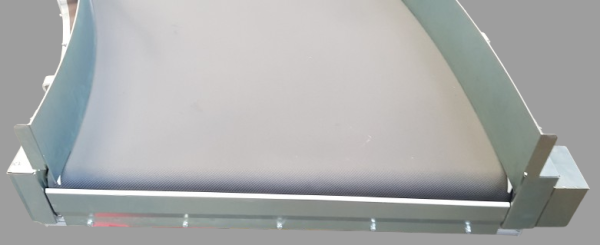

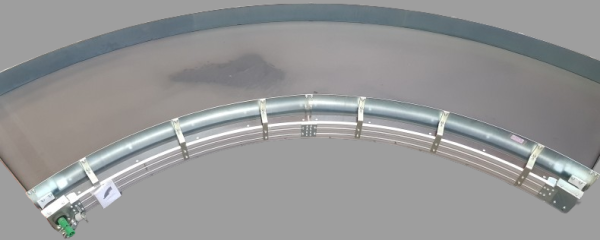

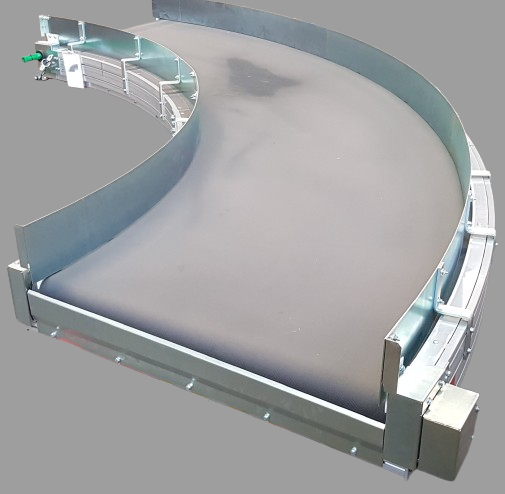

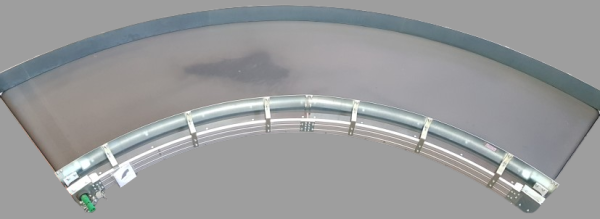

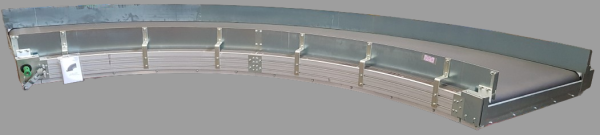

Transnorm curved belt conveyor left 90°-1370-1200-IR2500 -- NEW

Preview: Transnorm curved belt conveyor left 90°-1370-1200-IR2500 -- NEW

Transnorm curved belt conveyor left 90°-1370-1200-IR2500 -- NEW

€6,950.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2341

Transnorm belt curve conveyor left GKF 90°-1370-1200-IR2500 -- NEW RA2341 Technical... more

Close menu

Product information "Transnorm curved belt conveyor left 90°-1370-1200-IR2500 -- NEW"

Transnorm belt curve conveyor left GKF 90°-1370-1200-IR2500 -- NEW

RA2341

Technical data:
Frame width (NB): 1370 mm
Frame width with Bearing cover: 1490 mm
Frame width with Bearing cover and Motor: 1700 mm
belt width (GuB): 1300 mm
height (BH): 250 mm
Inner radius (IR): 2500 mm
Conveying angle: 90° degrees
middler conveying speed (v m/s): 0.3-1.0 m/s
Drive: SEW motor motor with frequency converter
Electrical data: 50Hz V380-500, kW 1.5 / S1
Belt: KT 96 new
Year of construction: 2020
Height Sideguides: 194 mm
Maximum package size 2500x1000mm, 1200x1150mm or 1000x1160mm

Motor is not in the photos, will be installed at purchase.

Optionally available:
Supports

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2020
condition:	new
Nominal / inner radius in mm:	2500
Nominal / outside width in mm:	1370
Belt width in mm:	1200
angle:	90°
Driven:	YES
Running direction:	LINKS
Engine type:	SEW Eurodrive
KW:	1,5/S1
Conveyor speed m / s:	freely adjustable, 0,3-1,0 m/s
scope of delivery:	including side guides without supports, including Movimot frequency converter
