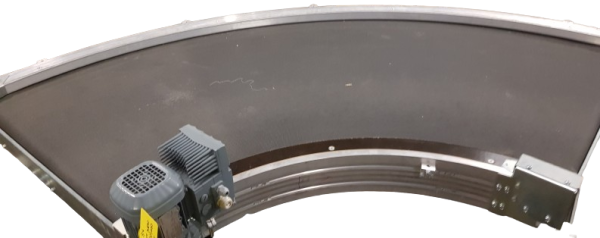

Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500
Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500
Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500
Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500
Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500
Preview: Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500 Preview: Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500 Preview: Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500 Preview: Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500 Preview: Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500


Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500

Transnorm
€6,239.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Do you have any questions concerning this product?
Description Zusatzinformationen
Description
Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500 RA2334 Technical data:... more
Close menu
Product information "Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500"

Transnorm curved belt conveyor left bend 90°-1400-1200 IR2500

RA2334
Technical data:

Manufacturer: Transnorm
Condition: good (used)
conveying angle: 90°
nominal/external width (NB): 1400 mm
belt width (GB): 1200 mm
innerradius (IR): 2500 mm
overall height (BH): 260 mm
motor height (MH): 450 mm
Motor type: SEW gear motor
Electrical Data: 380-500 V, 0,55 kW
Conveying speed: contact us for an individual convoying speed
Scope of delivery: without supports (if required, please contact us)

Optional:
supports
Side guides
Frequency converter for stepless speed control

Price plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg

Construction year: 2020
condition: new
Nominal / inner radius in mm: 2500
Nominal / outside width in mm: 1400
Belt width in mm: 1200
angle: 90°
Driven: YES
Running direction: LINKS
Engine type: SEW Eurodrive
KW: 0,55/S1
Conveyor speed m / s: bitte Kontaktieren
scope of delivery: ohne Frequenzumrichter, without supports and side guides
Zusatzinformationen
Zusatzinformationen

Für eine individuelle, fachmännische Beratung setzten Sie sich einfach mit uns in Verbindung.
Kontaktieren Sie uns einfach telefonisch oder per Mail.
Wir helfen Ihnen gerne bei der Planung und Umsetzung Ihrer Projekte.

Wir freuen uns darauf von Ihnen zu hören.

Mit freundlichen Grüßen

Ihr Team der Dr. Sonntag GmbH & Co. KG
Ihr Spezialist und Ansprechpartner für Intralogistik
