Transnorm curved belt conveyor left 90°-700-500-IR450 - NEW

Preview: Transnorm curved belt conveyor left 90°-700-500-IR450 - NEW

Transnorm curved belt conveyor left 90°-700-500-IR450 - NEW

€4,897.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2313

Transnorm belt curve conveyor left GKF 90°-700-500-IR450 - NEW RA2313 Technical data:... more

Close menu

Product information "Transnorm curved belt conveyor left 90°-700-500-IR450 - NEW"

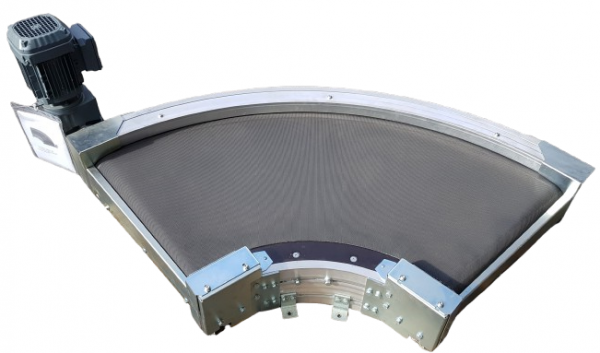

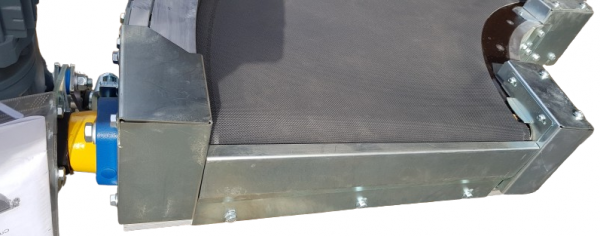

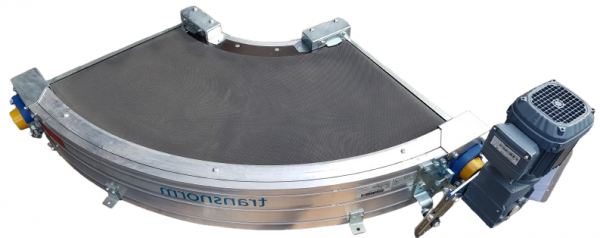

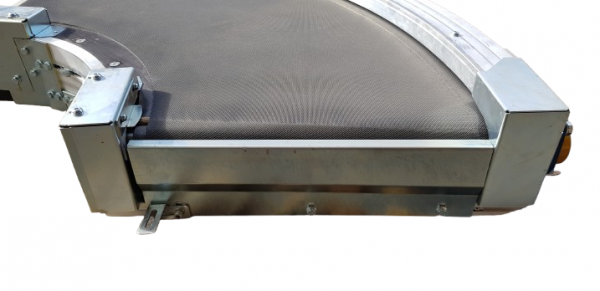

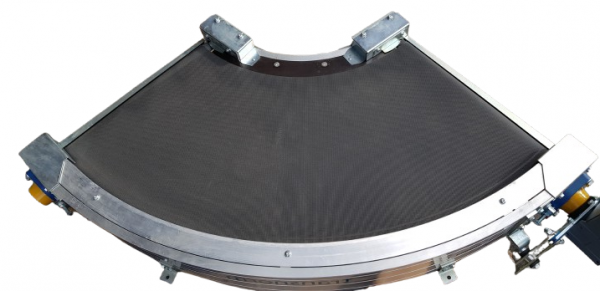

Transnorm belt curve conveyor left GKF 90°-700-500-IR450 - NEW

RA2313

Technical data:
Frame width (NB): 700 mm
Frame width with Bearing cover and motor: 900 mm
belt width (GuB): 500 mm
height (BH): 220 mm
height with motor (MH): 350 mm
Inner radius (IR): 450 mm
Conveying angle: 90° degrees
Conveying speed (v m/s): 0,67m/s
Drive: SEW motor motor
Electrical data: 50Hz V380-500, kW 0,55 / S1
Year of construction: 2020

Optionally available:
Supports Sideguides
Sideguides
Frequency converter for stepples speed controll

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, Gattingerstreet 11 B & C, 97076 Würzburg

Construction year:	2020
condition:	new
Nominal / inner radius in mm:	450
Nominal / outside width in mm:	700
Belt width in mm:	500
angle:	90°
Driven:	YES
Running direction:	LINKS

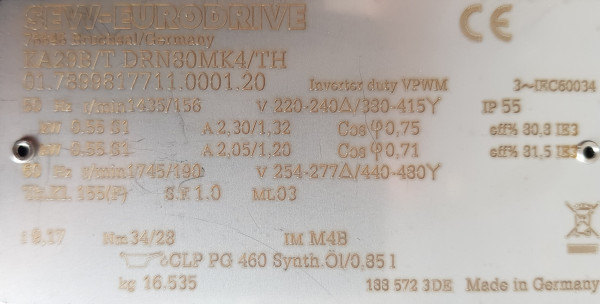

Engine type:	SEW Eurodrive
KW:	0,55/S1
Conveyor speed m / s:	0,67
scope of delivery:	without supports and side guides
