Transnorm modular conveyor with combiner conveyor belt GF 2500-1300-1200

Preview: Transnorm modular conveyor with combiner conveyor belt GF 2500-1300-1200

Transnorm modular conveyor with combiner conveyor belt GF 2500-1300-1200

€4,367.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2230

Transnorm modular conveyor with combiner conveyor belt GF 2500-1300-1200 RA2230 Merging of two... more

Close menu

Product information "Transnorm modular conveyor with combiner conveyor belt GF 2500-1300-1200"

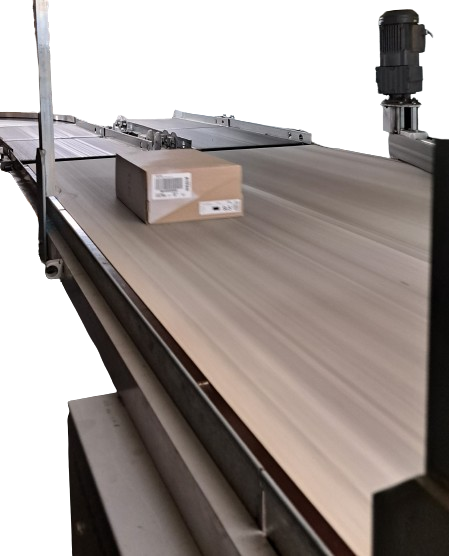

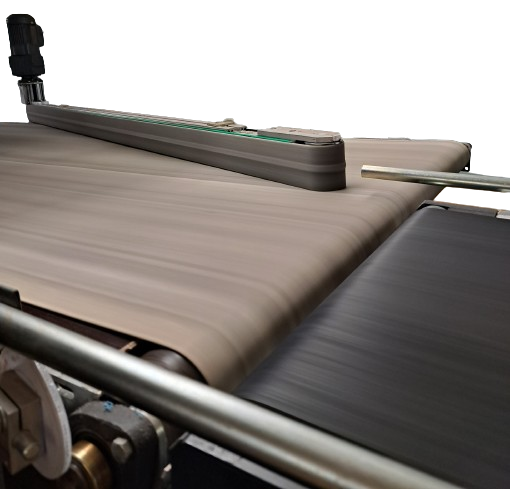

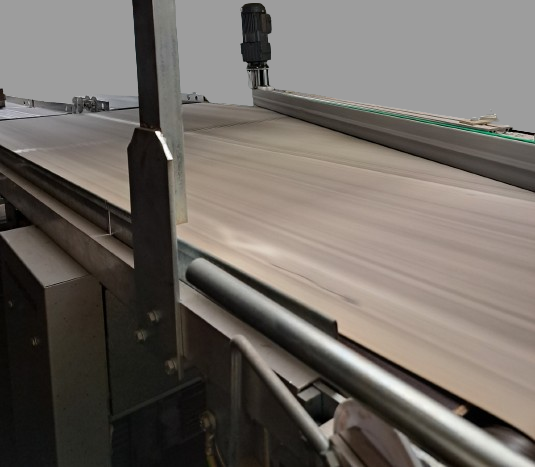

Transnorm modular conveyor with combiner conveyor belt GF 2500-1300-1200

RA2230

Merging of two belts into one

Technical data:

Conveyor length (NL): 2500 mm
Frame width (NB): 1300 mm, 1600 mm with motor
Belt width (GuB): 1200 mm
Overall height (BH): 80 mm, 430 mm with motor at the bottom, approx. 1000 mm with motor at the top
Scraper height: 190 mm (without motor)
Belt width/height scraper: 180 mm
Support feet: optionally available
Conveyor speed (v m/s): 1

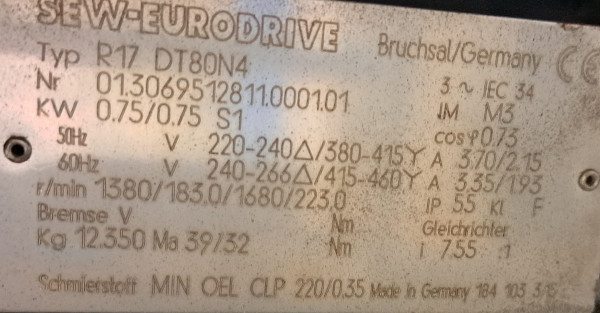

Drive: SEW geared motor, R17 DT80N4
Electrical data: 50Hz V380-500, kW 0.75 S1
Drive pulley: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Lateral guide on one and both sides
Frequency inverter for stepless speed change
Adjustable length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2001
condition:	good (used)
Conveying length in mm:	2500
Nominal / outside width in mm:	1300
Belt width in mm:	1200
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	0,75/S1
Conveyor speed m / s:	1
scope of delivery:	without supports and side guides
