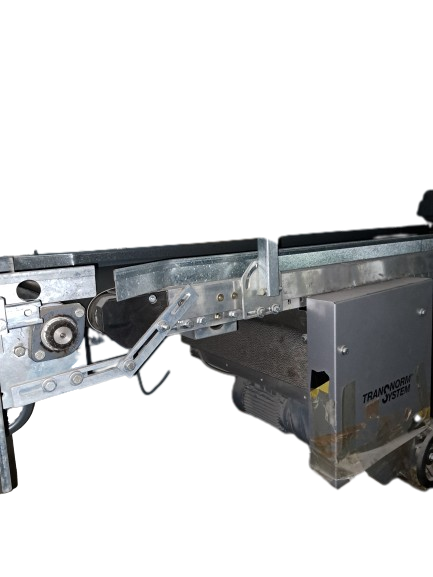

Transnorm belt conveyor belt conveyor GF 2350-600-500

Transnorm belt conveyor belt conveyor GF 2350-600-500

€2,052.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2191

Transnorm conveyor belt GF 2350-600-500 RA2191 Technical data: Conveyor length (NL): 2350 mm... more

Close menu

Product information "Transnorm belt conveyor belt conveyor GF 2350-600-500"

Transnorm conveyor belt GF 2350-600-500

RA2191

Technical data:

Conveyor length (NL): 2350 mm
frame width (NB): 600 mm, 700 mm with motor
belt width (GuB): 500 mm
Overall height (BH): 80 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): 0,67
Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0,37 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year:	2014
condition:	good (used)
Conveying length in mm:	2350
Nominal / outside width in mm:	600
Belt width in mm:	500
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	0,37/S1
Conveyor speed m / s:	0.67
scope of delivery:	without supports and side guides
