Product information "Transnorm Rising falling Incline with arch belt conveyor GF 6200-800-900-800"

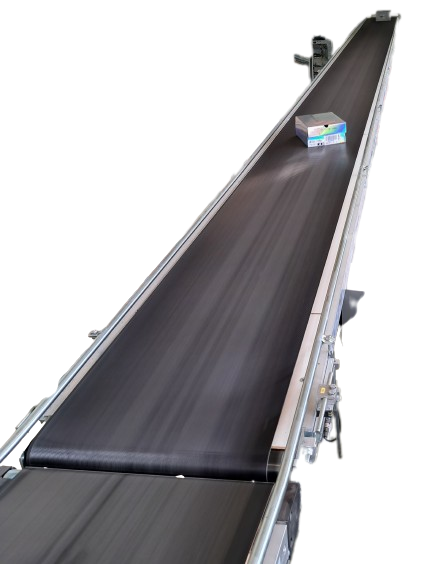

Transnorm Rising falling Incline with arch belt conveyor GF 6200-800-900-800

RA2180

Technical data:

Conveyor length (NL): 7000 mm (6200 mm incline + 800 mm arch)
frame width (NB): 900 mm, 1000 mm with motor
belt width (GuB): 800 mm
Overall height (BH): 80 mm, 430 mm with motor
Angle: freely adjustable between 0 and 15°
Supporting feet: optionally available
Conveying speed (v m/s): 0,42

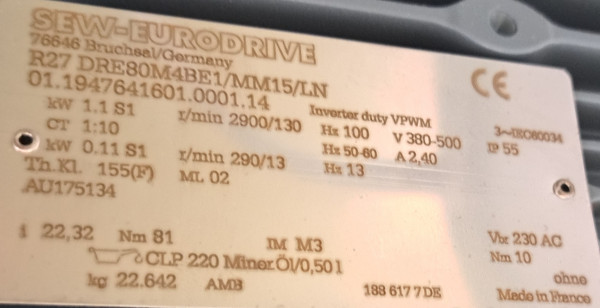

Drive: SEW gear motor, R27 DRE80M4BE1/MM15/LN
Electrical data: 50Hz V380-500, kW 1,1 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed controll
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

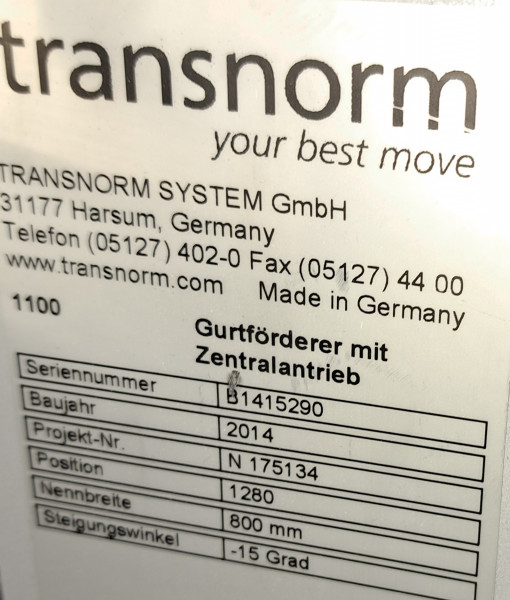

Construction year:	2014
condition:	good (used)
Conveying length in mm:	7000 ( 6200 + 800 )
Nominal / outside width in mm:	900
Belt width in mm:	800
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	1,1/S1
Conveyor speed m / s:	0,42
scope of delivery:	without supports and side guides
