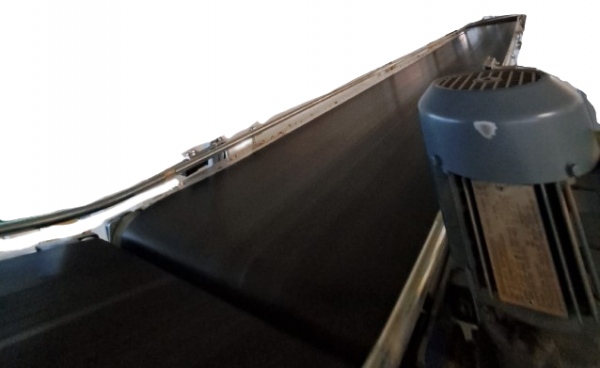

Transnorm belt conveyor belt conveyor GF 5100-700-600

Preview: Transnorm belt conveyor belt conveyor GF 5100-700-600

Transnorm belt conveyor belt conveyor GF 5100-700-600

€3,062.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2105

Transnorm belt conveyor GF 5100-700-600 RA2105 Technical data: Conveyor length (NL):... more

Close menu

Product information "Transnorm belt conveyor belt conveyor GF 5100-700-600"

Transnorm belt conveyor GF 5100-700-600

RA2105

Technical data:

Conveyor length (NL): 5100 mm
frame width (NB): 700 mm, 800 mm with motor
belt width (GuB): 600 mm
Overall height (BH): 80 mm, 300 mm with motor
support feet: optional
Conveying speed (v m/s): Frequency converter for stepless speed control
Drive: SEW gear motor, SA37/T DT71D4/TH
Electrical data: 50Hz V380-500, kW 0,37 S1
drive drum: Ø = 81 mm
belt return roller: Ø = 81 mm
Year of manufacture: 1994

Optionally available:
Supports
Side guide on one side and on both sides
Customize length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year:	2014
condition:	good (used)
Conveying length in mm:	5100
Nominal / outside width in mm:	700
Belt width in mm:	600
Driven:	YES
Engine type:	SEW Movi-Mot
KW:	0,37/S1
Ampere:	1,30
Conveyor speed m / s:	freely adjustable
scope of delivery:	without supports and side guides, including Movimot frequency converter
