Transnorm belt conveyor belt conveyor 1252-600-500 gate passage

Transnorm belt conveyor belt conveyor 1252-600-500 gate passage

RA2049

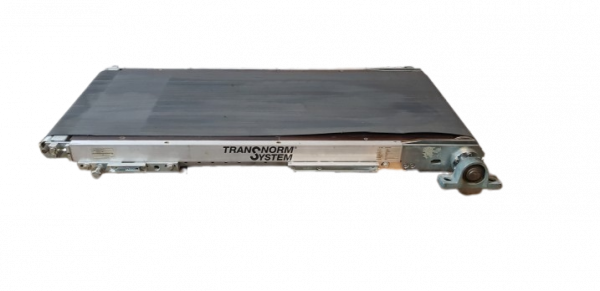

The Transnorm belt conveyor is from 1999 and in a good (used) condition. It is perfect as a feeder belt and has a Van der Graaf brand motor. Supports are not included in the delivery. These are available as an option.

Technical data:

Manufacturer: Transnorm
Year of manufacture: 1999
Condition: good (used)
Motor: fully functional
conveying length (FL): 1251 mm
nominal/outer width (NB): 600 mm 735 with barings
belt width (GB): 500 mm
overall height (BH): 85 mm
motor height (MH): 110 mm
Motor type: Van der Graaf drum motor
Motor power: kW 0.25 230/400 V 50Hz
Conveying speed: 1,25 m/s

Scope of delivery: without supports (if required, please ask)
Optional:
Supports with dempers
Sideguides
Frequency converter
We can also extend the conveyor to your needed dimension

Price plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg
