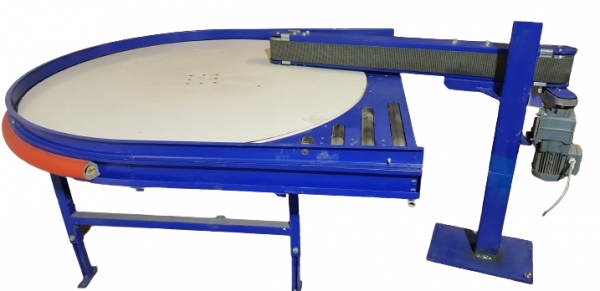

Rotary table disc conveyor 1700-1600-Ø1500 with ejector 1330-100

Preview: Rotary table disc conveyor 1700-1600-Ø1500 with ejector 1330-100

Rotary table disc conveyor 1700-1600-Ø1500 with ejector 1330-100

€5,100.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2026

Rotary table disc conveyor 1700-1600-Ø1500 with ejector 1330-100 RA2025 Technical data rotary... more

Close menu

Product information "Rotary table disc conveyor 1700-1600-Ø1500 with ejector 1330-100"

Rotary table disc conveyor 1700-1600-Ø1500 with ejector 1330-100

RA2025

Technical data rotary table:
Length table: 1700 mm
width table: 1600 mm
diameter turntable: 1500 mm
Overall height: 100 mm
Adjusted table height: 790 mm, can be moved down to 590 mm
Electrical data SEW motor: 380-415 V, 0,37 kW
Electrical data drum motor: 24V

Technical data diverter:
Length/ belt length: 1330 mm
belt width: 100 mm
overall height: 840 mm
Electrical data: 380-415 V, 0,25 kW

Included in delivery:
Turntable with feet
Side guide
Ejector with stand

Optional:
Light barriers
24V power supply for drum motor
control cabinet/control

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Electric data:	0,25 kW, 0,37 kW, 24 V, 380-415
Rotating plate diameter:	1500
Overall length in mm:	1700
Nominal / outside width in mm:	1600
Conveying length in mm:	1330
Belt width in mm:	100
Bauhöhe in mm (BH):	790, 840
