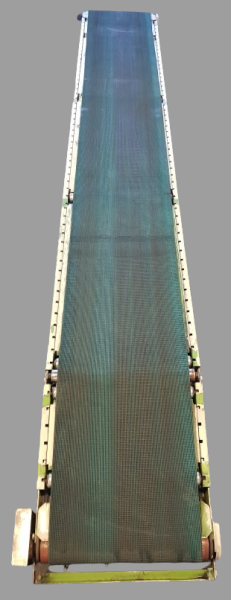

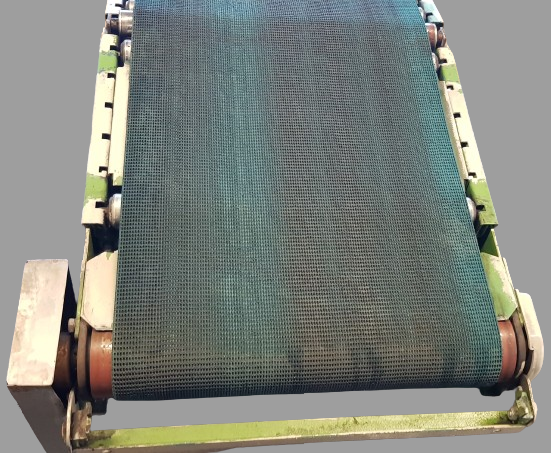

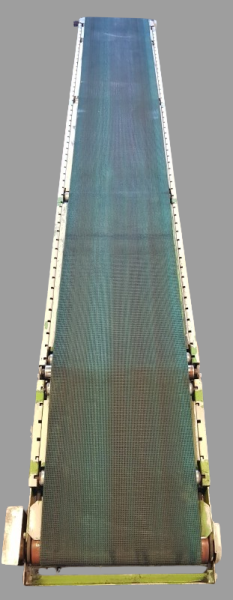

Dematic belt conveyor Rising falling Incline with arch GF 2700-600-500

Preview: Dematic belt conveyor Rising falling Incline with arch GF 2700-600-500

Dematic belt conveyor Rising falling Incline with arch GF 2700-600-500

€1,060.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2372

Dematic belt conveyor Rising falling Incline with arch GF 2700-600-500 RA2372 Technical... more

Close menu

Product information "Dematic belt conveyor Rising falling Incline with arch GF 2700-600-500"

Dematic belt conveyor Rising falling Incline with arch GF 2700-600-500

RA2372

Technical data:

Conveyor length (NL): 2700 mm (2700 mm incline + 700 mm arch)
frame width (NB): 600 mm
belt width (GuB): 500 mm
Overall height (BH): 1400 mm, 430 mm with motor
Angle: freely adjustable between 0 and 15°
Supporting feet: optionally available
Conveying speed (v m/s): 0.5
Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0,55 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed controll
Refurbishment possible
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year:	1987
condition:	good (used)
Conveying length in mm:	2700 (2000 + 700)
Nominal / outside width in mm:	600
Belt width in mm:	500
Driven:	YES
Engine type:	SEW Getriebemotor
KW:	0,55/S1
Conveyor speed m / s:	0,5
scope of delivery:	without supports and side guides
