Product information "Transnorm belt conveyor Flap belt switch"

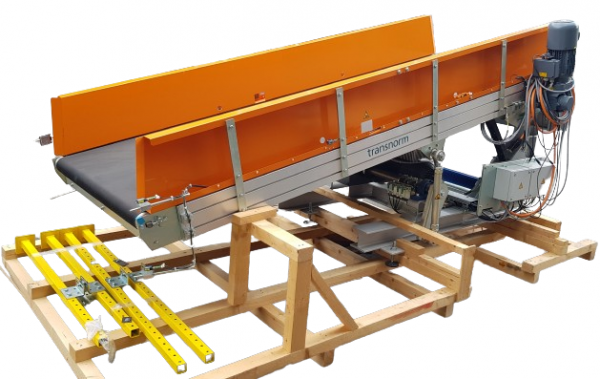

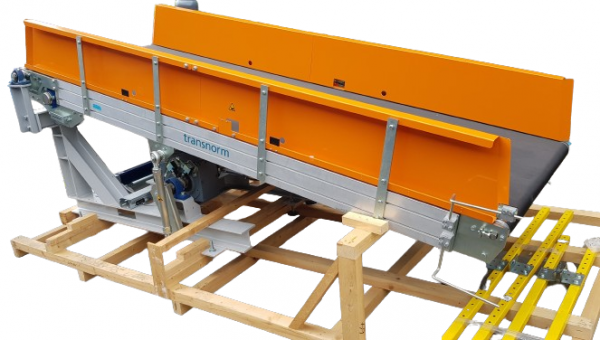

Transnorm belt conveyor hinged belt diverter 3000x1120x1000

RA2286

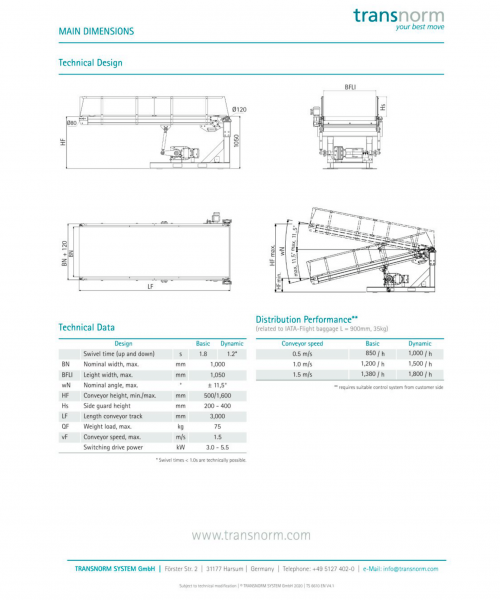

Technical data:

Conveyor length (NL): 3000 mm

Belt body (NB): 1120 mm

Belt width (GuB): 1000 mm

Overall height/transfer height (BH): 1050 mm +100 mm adjustment range

Minimum transfer height: 500 mm

Maximum transfer height: 1600 mm

Basic dimensions: 3000x1300 mm

Tilt height difference: 1100 mm

Conveying speed (v m/s): 1.5 m/s

Lifting/lowering speed: 1.8 s /1.2 s

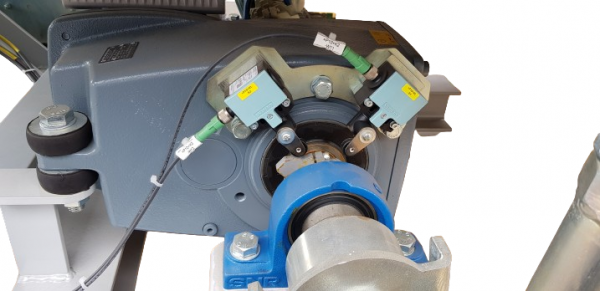

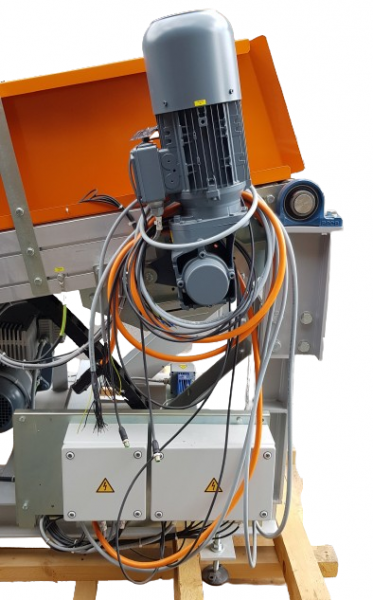

Drive: Nord geared motor

Electrical data:

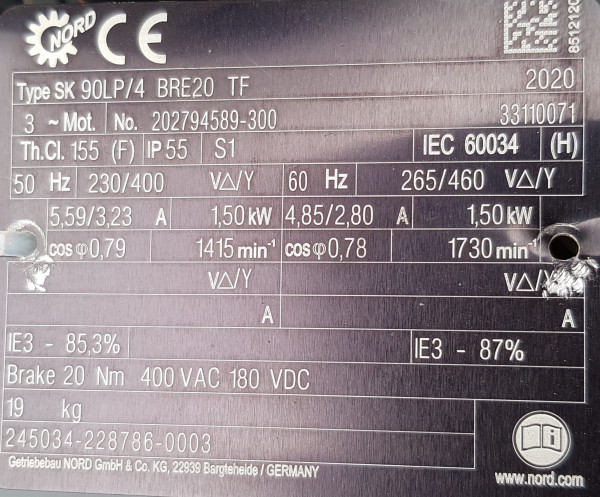

Conveyor belt motor: 50Hz V380-500, kW 1.5 / S1

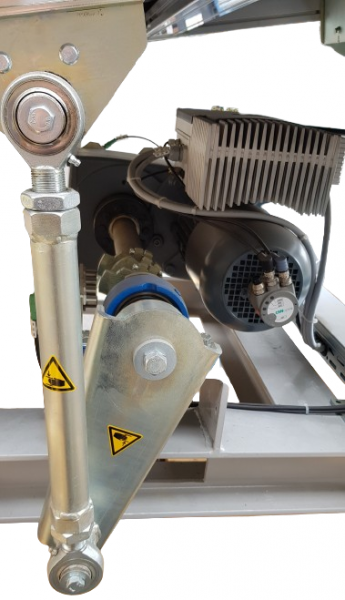

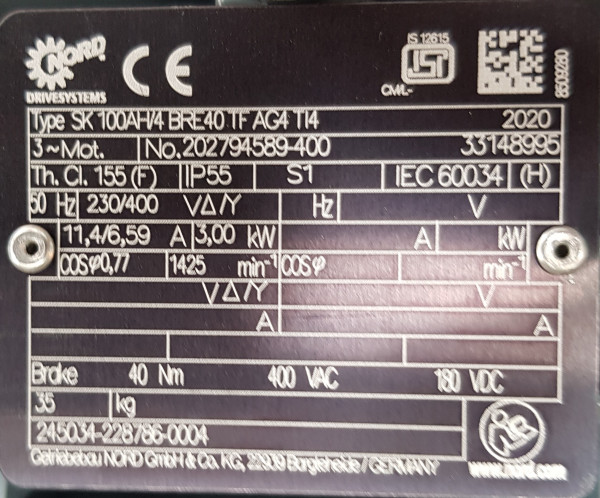

Tilting motor: 50Hz V220/400, kW 3.0 / S1

Idler pulley (UR): Ø = 80/120 mm

Drive drum (AT): Ø = 82 mm

Year of construction: 2020

Optionally available:

Frequency converter for stepless speed control

Prices net plus ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2020
condition:	new
Conveying length in mm:	3000
Nominal / outside width in mm:	1120
Belt width in mm:	1000
Driven:	YES
Engine type:	Nord
KW:	1,5/S1, 3,0/S1
Conveyor speed m / s:	1,5
scope of delivery:	including supports and side guides
